Project Overview
Sichuan Dexun Future Technology is a new fire extinguisher manufacturing project focusing on the production of dry powder fire extinguishers and water-based fire extinguishers.
As a newly established manufacturing facility, the customer required a complete production solution to build a modern fire extinguisher factory with high automation, stable production performance, and integrated manufacturing processes.
Based on the customer's product requirements and production objectives, Guangzhou Zhongwen Machinery Equipment Co., Ltd. provided a turnkey automated fire extinguisher production line solution, covering the complete process from cylinder manufacturing, welding, surface treatment, filling, testing, labeling, packaging, and palletizing.
The project demonstrates Zhongwen Machinery’s capability to design and deliver complete fire extinguisher manufacturing systems from initial production planning to finished product output.
Customer: Sichuan Dexun Future Technology
Project Type: New Fire Extinguisher Factory Construction
Industry: Fire Extinguisher Manufacturing
Product Types: Dry Powder Fire Extinguishers & Water-Based Fire Extinguishers
Cylinder Structure: Rolled Shell Cylinder with M-Shaped Bottom Cover
Production Mode: Fully Automated Production Line + Semi-Automatic Production Line
Product Range: φ130mm 3-4kg Fire Extinguishers / 1kg-8kg Fire Extinguishers
Solution: Turnkey Fire Extinguisher Manufacturing Solution
Customer Requirements
As a new factory project, the customer required a complete manufacturing system capable of producing M-shaped bottom fire extinguishers with:
· Complete production process integration
· High automation level
· Stable and continuous production capability
· Reliable welding quality
· Reduced dependence on manual operation
· Automated packaging and palletizing
The customer needed not only individual machines, but a complete production solution including process design, equipment integration, and automation implementation.
Complete Manufacturing Solution
Zhongwen Machinery provided a complete production system integrating:
Cylinder Manufacturing
· Upper and lower head stamping
· Automatic valve seat thread welding
· Automatic bottom head marking and stamping

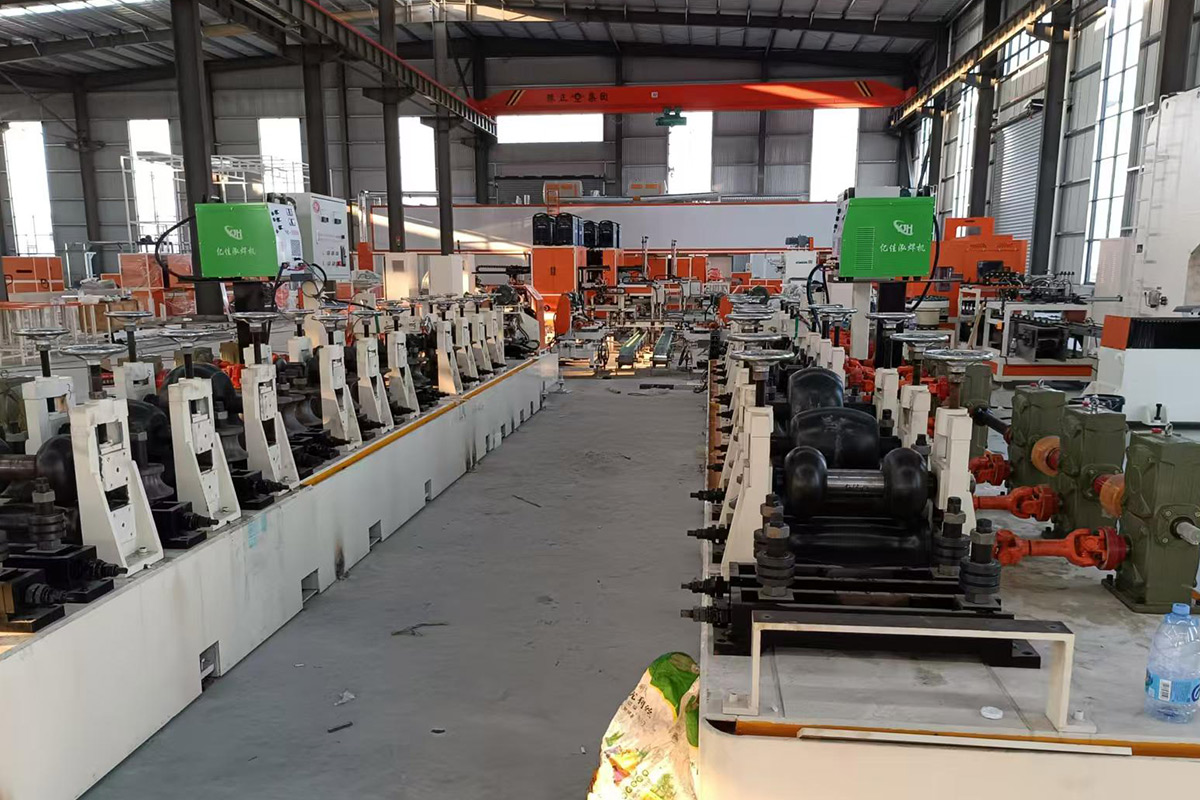

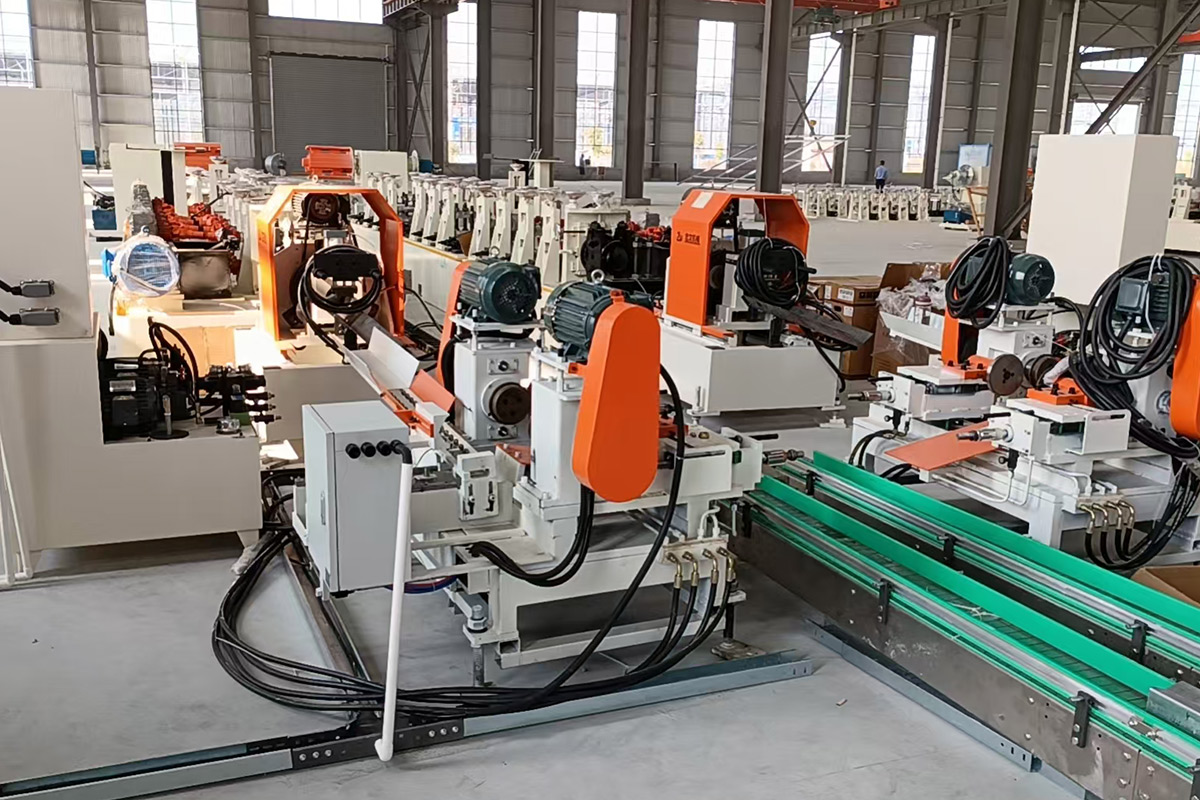

· Steel coil rolling and longitudinal welding
· Cylinder cutting and necking
· Cylinder forming
Welding & Inspection

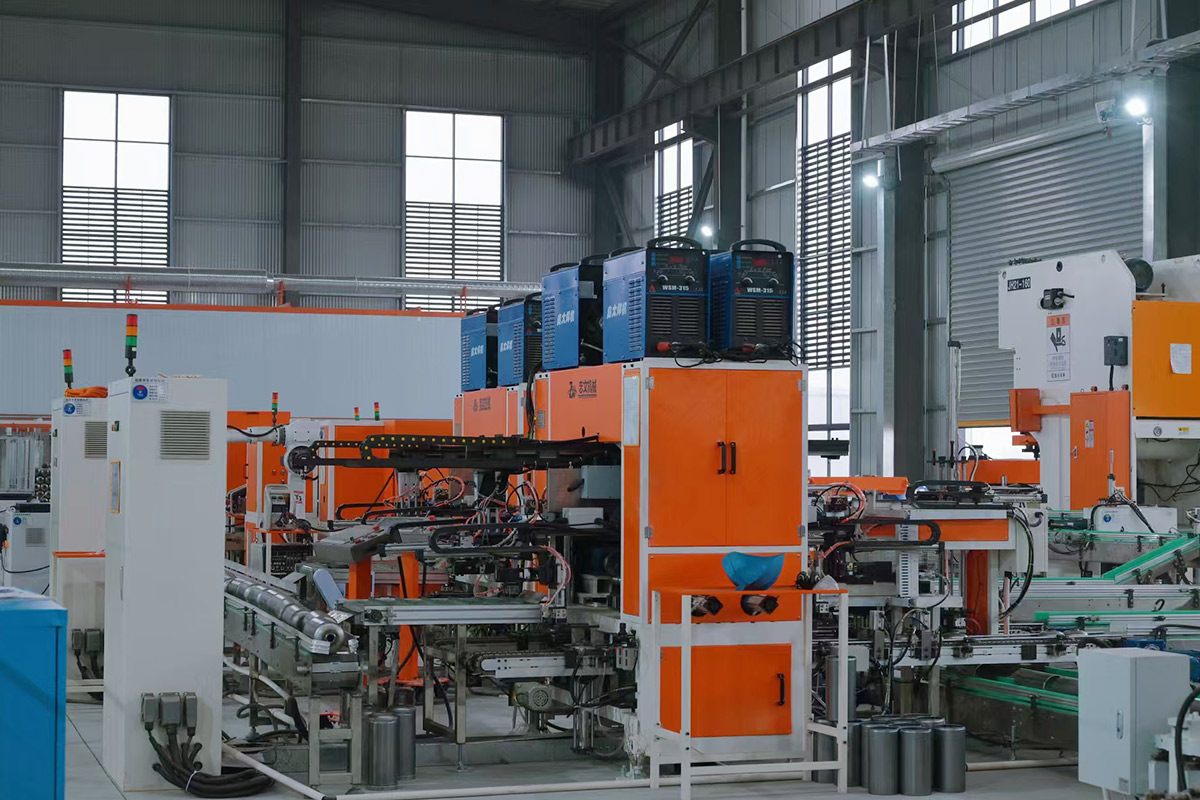

· Automatic circumferential tack welding

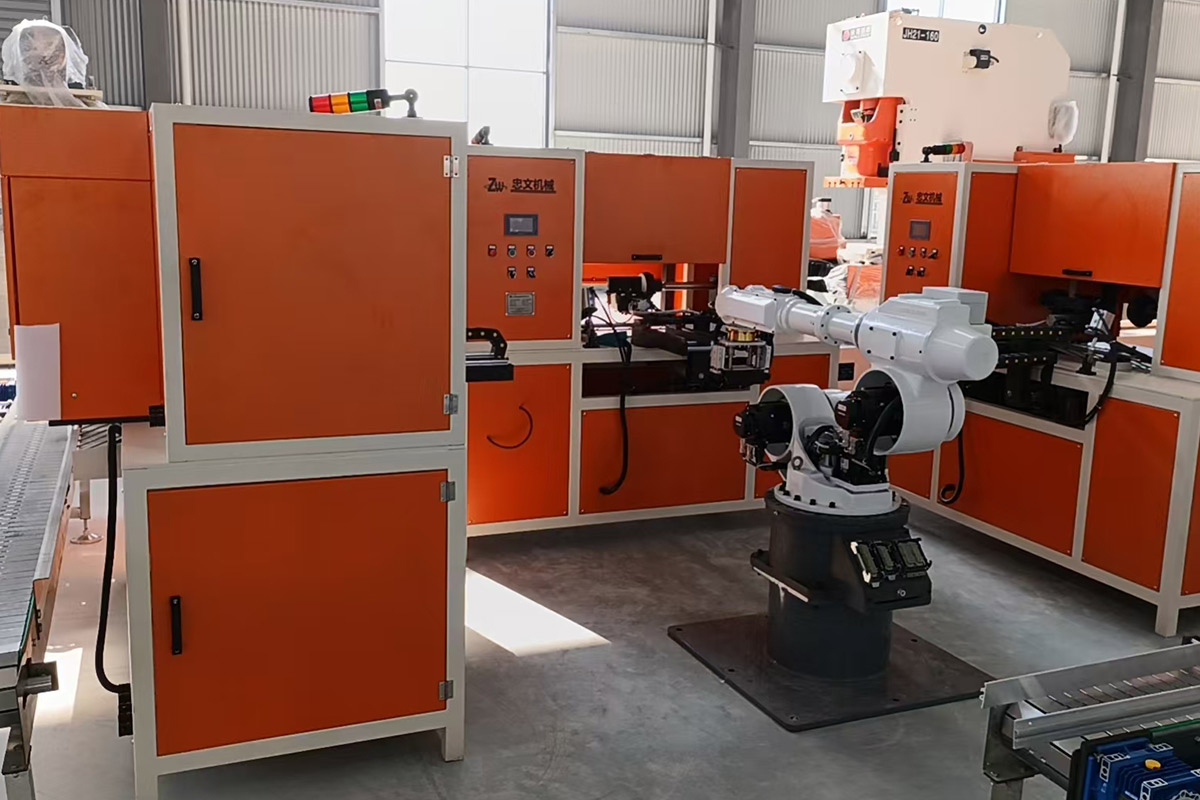

· Robotic circumferential welding

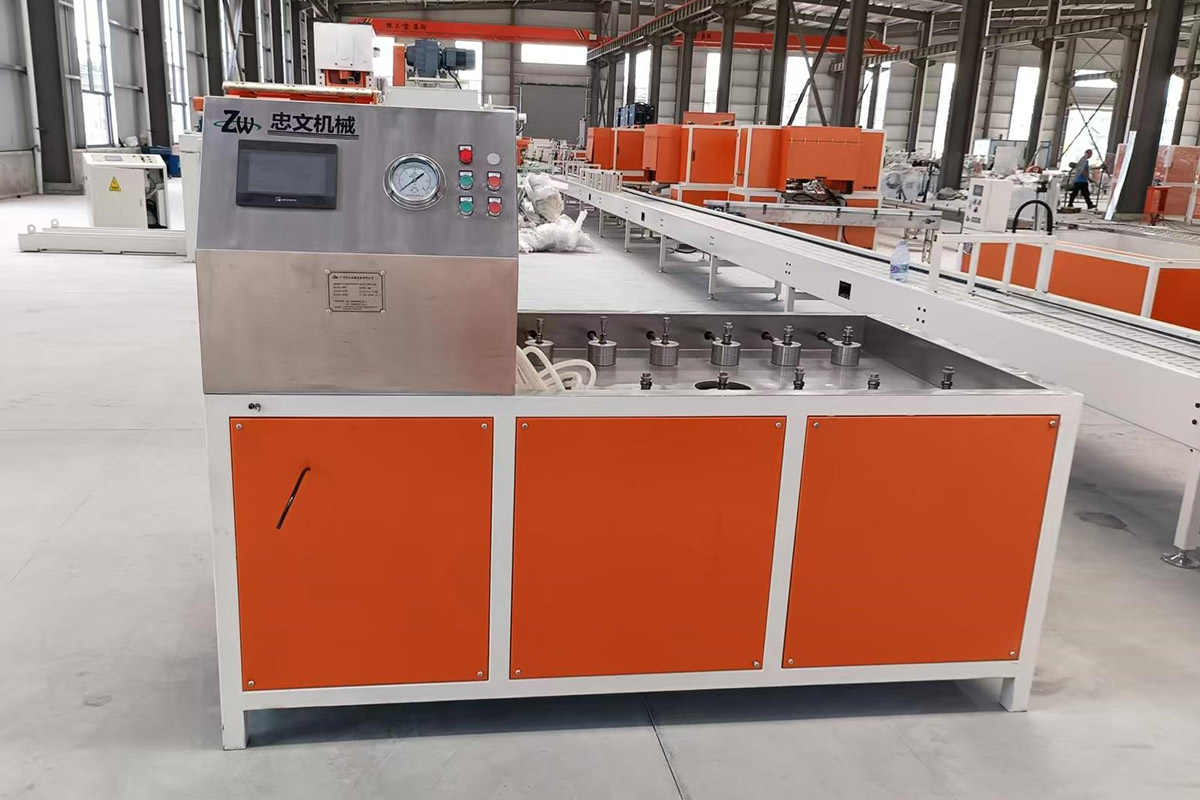

· Automatic leak testing
· Product quality inspection
Surface Treatment & Filling
· Automatic grinding
· Powder coating
· Dry powder / water-based foam filling
· Finished product water testing
Automatic Packaging System
· Automatic labeling
· Automatic carton opening

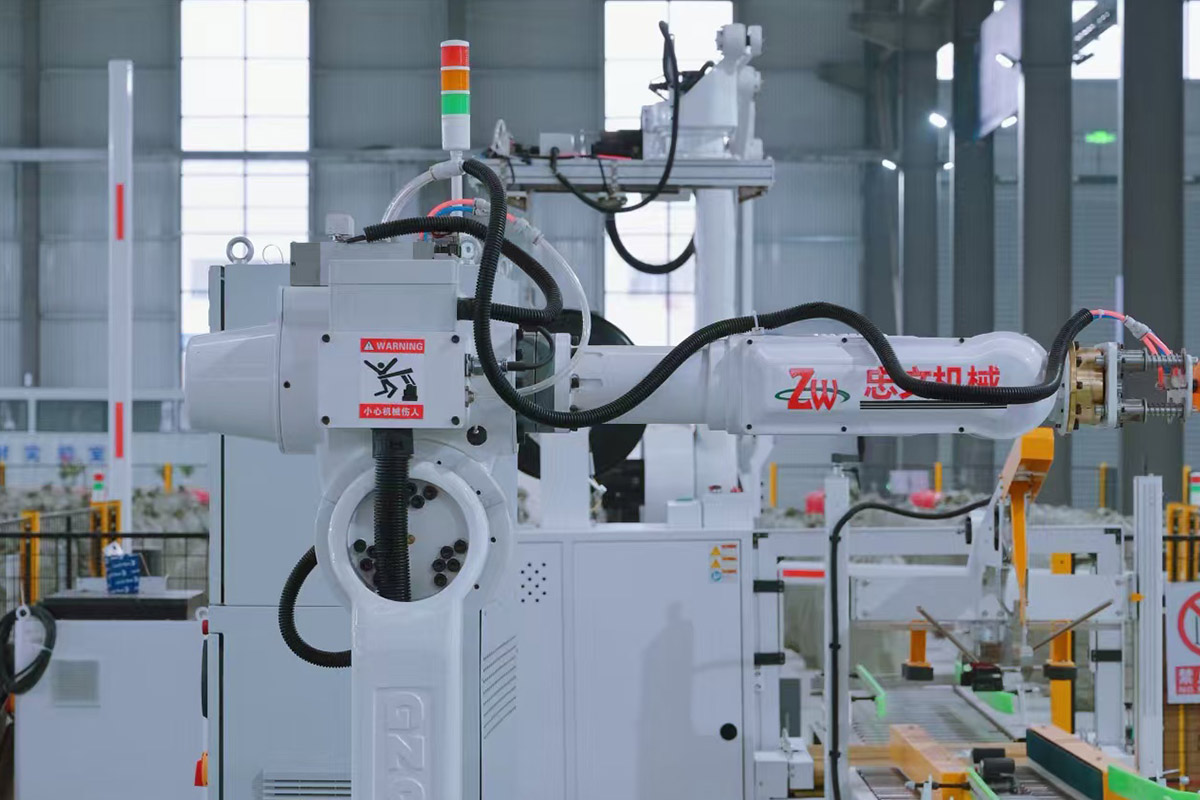

· Robotic carton packing
· Carton sealing

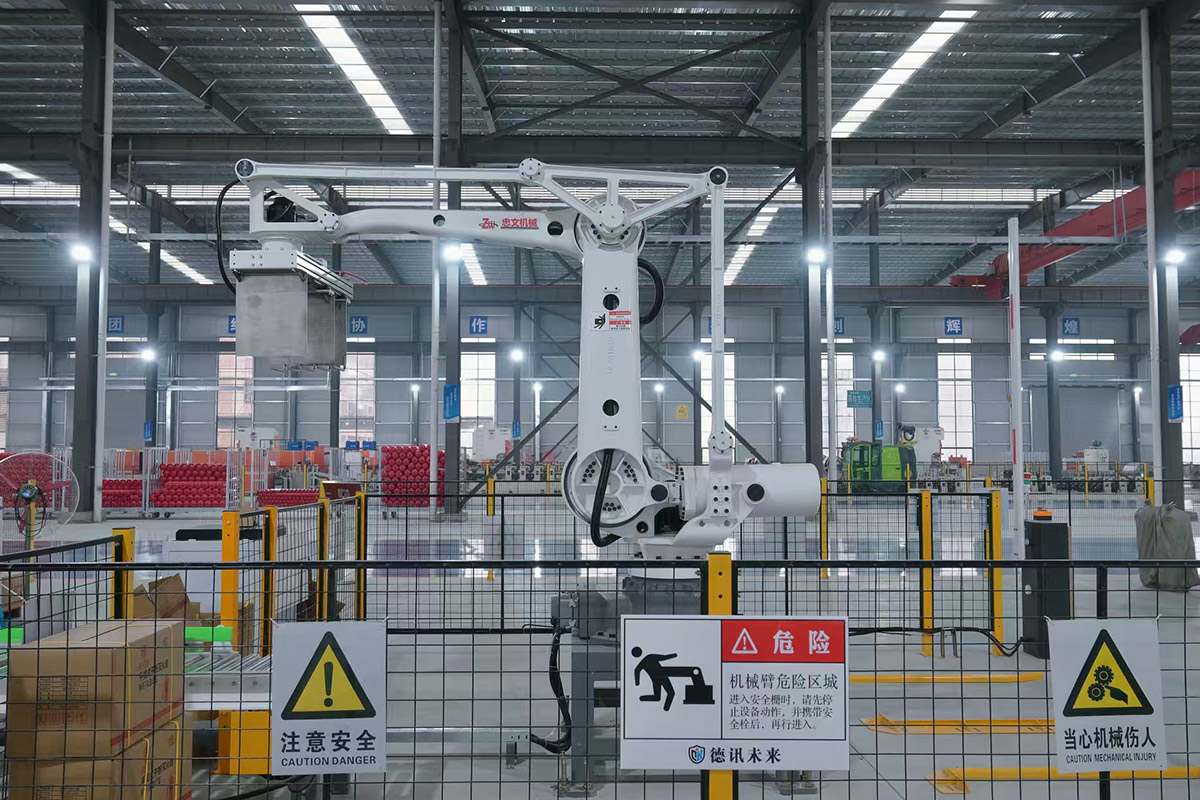

· Robotic palletizing
Smart Manufacturing Highlights
This project integrates automation technologies throughout the production process, including:
· Robotic welding system
· Automatic material handling
· Automated inspection system
· Automatic packaging system
· Robotic palletizing system
Through intelligent production integration, the customer achieved a modern manufacturing system from raw material processing to finished product packaging.
Zhongwen Turnkey Solution
For this new factory project, Zhongwen Machinery provided:
· Production process planning
· Equipment configuration design
· Automated production line integration
· Manufacturing and assembly
· Installation and commissioning support
· Technical training
The project reflects Zhongwen Machinery’s ability to provide complete turnkey fire extinguisher production solutions for customers building new manufacturing facilities.
Project Value
The completed production system provides the customer with a complete and efficient fire extinguisher manufacturing platform.
Through the integration of cylinder production, welding, testing, coating, filling, packaging, and palletizing processes, the customer established a modern production facility with:
· Higher production efficiency
· Improved product consistency
· Reduced manual operations
· Enhanced automation capability
· Stable long-term production performance
